Level 1 Led Arrow Board

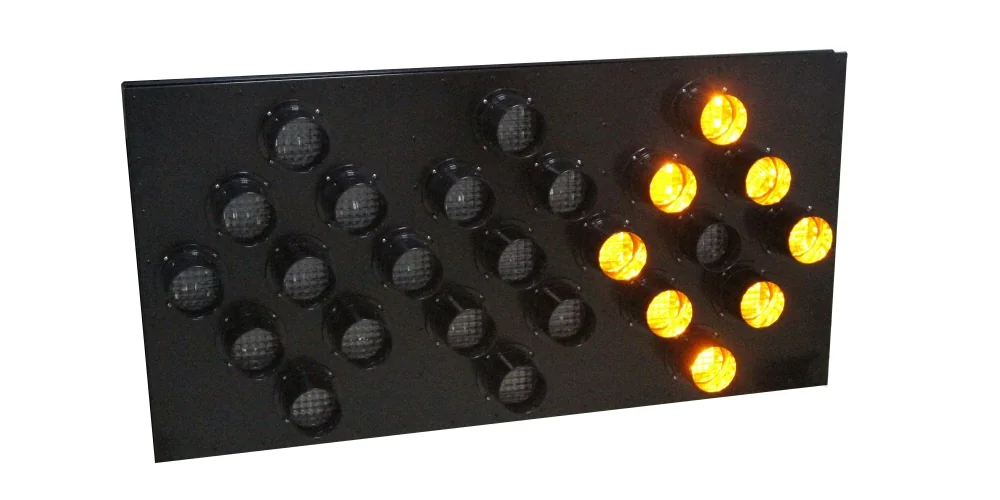

Level 1 LED Arrow Board – 25 Light Vehicle-Mounted Traffic Panel

The HW1 Level 1 LED Arrow Board is a robust and compliant directional signage solution designed for vehicles involved in traffic control and temporary traffic management (TTM). Built to meet CE and AS standards, and fully compliant with NZTA CoPTTM specifications, this arrow board is essential for safely directing traffic in work zones and roadside projects.

This vehicle-mounted panel is available in single or double-sided configurations and features 25 high-visibility amber LEDs with 4 or 12 selectable flashing patterns, ensuring your warning signals are seen in all conditions. It features a durable aluminium panel finished with black powder coating for enhanced corrosion resistance.

Installation is simple with 12V or 24V DC compatibility and a 12-metre cable for in-cab operation. The onboard controller includes beacon switch and lifting activation, and users can choose between manual or automatic brightness adjustment to suit lighting conditions.

Specifications:

• LED Lamps: 25 Amber LEDs

• Panel Sizes: 1500mm x 770mm

• Panel Thickness: 70mm

• Weight: 40kg (single-sided), 47kg (double-sided)

• Flash Patterns: 4 or 12 options

• Working Voltage: 12V or 24V DC

• Material: Aluminium panel with black powder-coated finish

• Ingress Rating: IP54

• Brightness: Auto-dimming and manual control

• Mounting: Includes 12m cable and in-cab controller with beacon and lift functions

Optional Extras:

• Red and white reflective chevron or surround

• “Pass With Care” sign

Ideal for utility trucks, council fleets, contractors, and TTM vehicles, the HW1 Level 1 LED Arrow Board ensures safety, reliability, and easy operation in the field.
