AWVMS trailer | advance warning displays

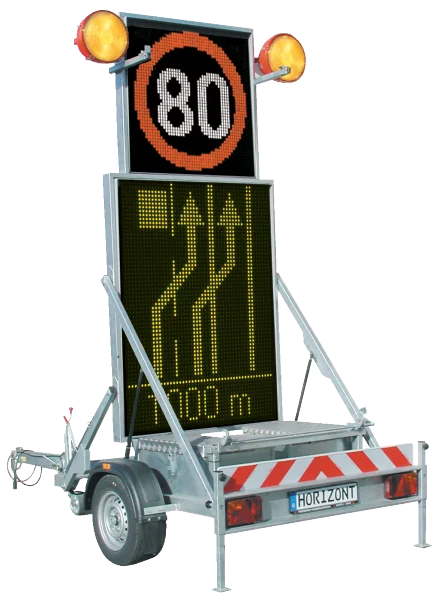

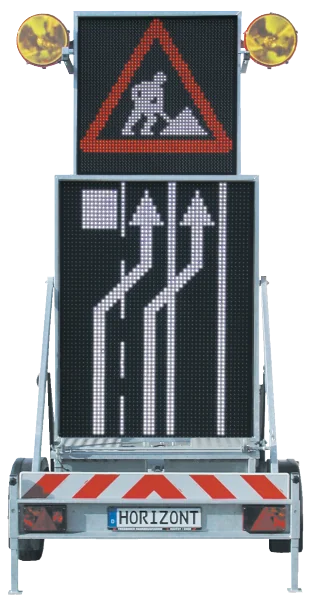

Our Full matrix RGB AWVMS trailers are an efficient way to warn motorists about upcoming work sites and danger spots.
They resist deterioration and show bright and clear images even in bad weather conditions.
A wide selection of road signs, guiding arrow signs and/or text messages enables the user to respond to almost all traffic situations, as programming can be made according to individual needs.
They are a one piece unit which can easily fitted to either a trailer or vehicle and removed just as easy.
High quality German manufacture, long lasting and hard wearing.
The additional Solar-Kit can be added for applications where a long run time of the VMS trailer is required for up to 100% self-sufficiency.

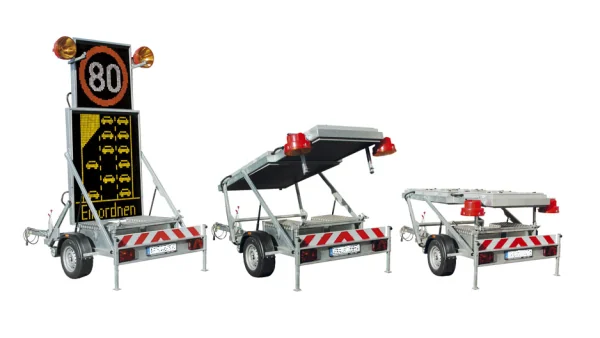

The solar panel is automatically erected while raising the LED board itself – no additional motor is needed!
Another special feature is the custom built folding mechanism of the solar panel allowing the batteries to be charged during transport or parking!
- photometric type approved by the German BASt according to EN 12966
- EMC approved
- with MS 340 advanced warning twin – system
- full matrix design, freely programmable
- no additional actuator required for lifting of the solar panel
- 430 W solar panel, mounted in hot dip galvanized stainless steel frame with articulated joint
- charging of batteries also during transport and parking
- extension of operating time of up to 100% self-sufficiency
- controlled via 8″ touchscreen display, WLAN (included)
- RGB – full colour, 16.7 million colours can be displayed
- screen change rate 15 – 60 / minute
- automatic brightness adjustment
- further 9 brightness levels can be chosen manually
- display of all common traffic signs
- animated pictures and texts can be displayed at the same time
- creation of further signs can be easily done via sign creation programme included in delivery
- Upper LED board
- dimensions 1,010 x 1,010 x 180 mm
- 48 x 48 pixel
- -traffic signs with Ø up 1,000 mm respectively side length 1,000 mm can be displayed
- Lower LED board
- dimensions 1,245 x 1,645 x 180 mm
- traffic guidance arrows fill the complete height of the board
- -texts can be overlayed
- Trailer, Chassis
- completely hot dip galvanized
- electronic lifting / lowering device
- electronic locking device secures the board in upright and transport position
- sturdy steel boxes with checker plate lid
- height adjustable drawbar 350 – 1,050 mm, hot galvanized
- suited for transport on FA 1 LR or Pick-up trailer
- GVWR: 750 kg
