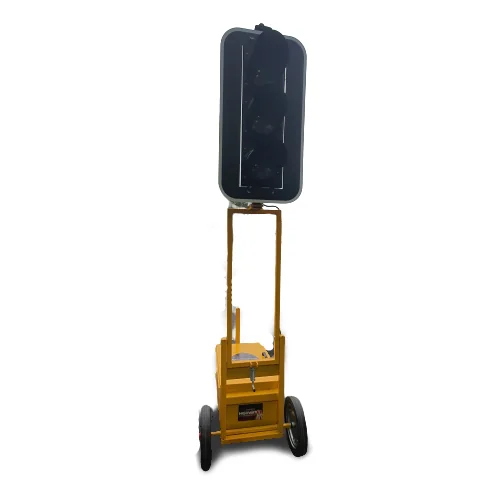

Heavy Duty Portable Traffic Lights

The HW1 Heavy Duty Portable Traffic Light System is designed for demanding temporary traffic management applications requiring extended operating time, flexibility and reliability.

Housed in a heavy-duty wheeled battery cart designed to accommodate larger battery capacities, the system supports radio-linked, cable-linked and quartz (timer) operation, making it suitable for roadworks, lane closures, temporary intersections and other traffic management applications.

Compatible with the HW1 Telescopic Cart, Heavy Duty Cart, Porta Auto and Dual Trailer Portable Traffic Signal Systems, the Heavy Duty Cart provides a flexible solution for expanding or integrating existing traffic light fleets.

Features

Operation Modes

• Radio-linked (Vehicle Activated): Supports radar vehicle detection for traffic-actuated operation.
• Quartz (Timer): Programmable time-based operation.
• Cable Linked: Wired operation where required.
• Manual Operation: Manual control when required.

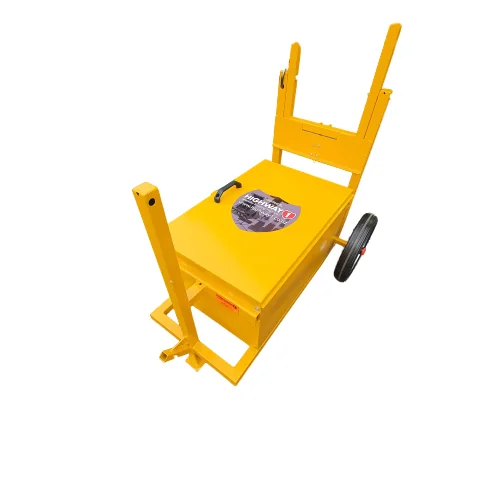

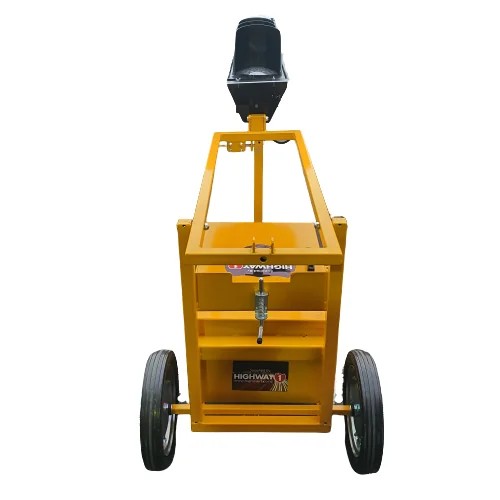

Heavy Duty Battery Cart

• Heavy-duty wheeled cart designed for larger battery capacities and extended operating times.
• Hot-swappable battery capability.
• Deep discharge battery protection designed to assist battery life and system reliability.

Signal Heads

• Supports up to 8 interchangeable signal heads.
• Compatible with HW1 Telescopic Cart, Heavy Duty Cart, Porta Auto and Dual Trailer systems.
• No master/slave pairing required.

Radio Communication System

• Up to 2 km line-of-sight radio communication under favourable operating conditions.*
• Multiple selectable radio channels to assist operation in varying radio frequency environments.
• Automatic or manual radio channel selection.
• Coded radio communication.
• Quartz fallback mode in the event of radio communication loss.

Advanced Programming

• Pre-programmed configurations for common traffic management applications including bottlenecks, junctions and intersections.
• User-programmable settings for recurring worksites.
• Automatic calculation of suggested signal timings based on configured speed and distance parameters.
• Day and weekly scheduling.
• Internal programme memory for up to 10 user programmes.

User Interface

• Illuminated LCD handheld controller.
• Intuitive menu-driven programming.
• Automatic night dimming.

Safety & Compliance

• Signal interlock system designed to prevent conflicting green indications during normal radio and cable operation.
• NZTA Approved.
• Complies with DIN EN 12368.
• Complies with DIN EN 12675.
• RiLSA compliant.
• Complies with VDE 0832.

Optional Accessories

• Wireless radio remote handset.
• Manual handheld controller.
• Cable connection kit.
• Countdown timer.
• Boom gate integration.
• Red time counter.

Additional Benefits

• Programme memory enables fast setup for recurring traffic management layouts.
• Designed for operation across a wide range of environmental conditions.
• LED optics designed for long service life.
• Compatible with existing HW1 portable traffic signal fleets, reducing training requirements and simplifying fleet management.

*Actual radio communication performance and operating range depend on system configuration, antenna installation, radio channel selection, line-of-sight conditions, local radio frequency interference, terrain, weather and other environmental factors. Actual operating range will vary between installations.
